Automatic LED lighting for cabinets.

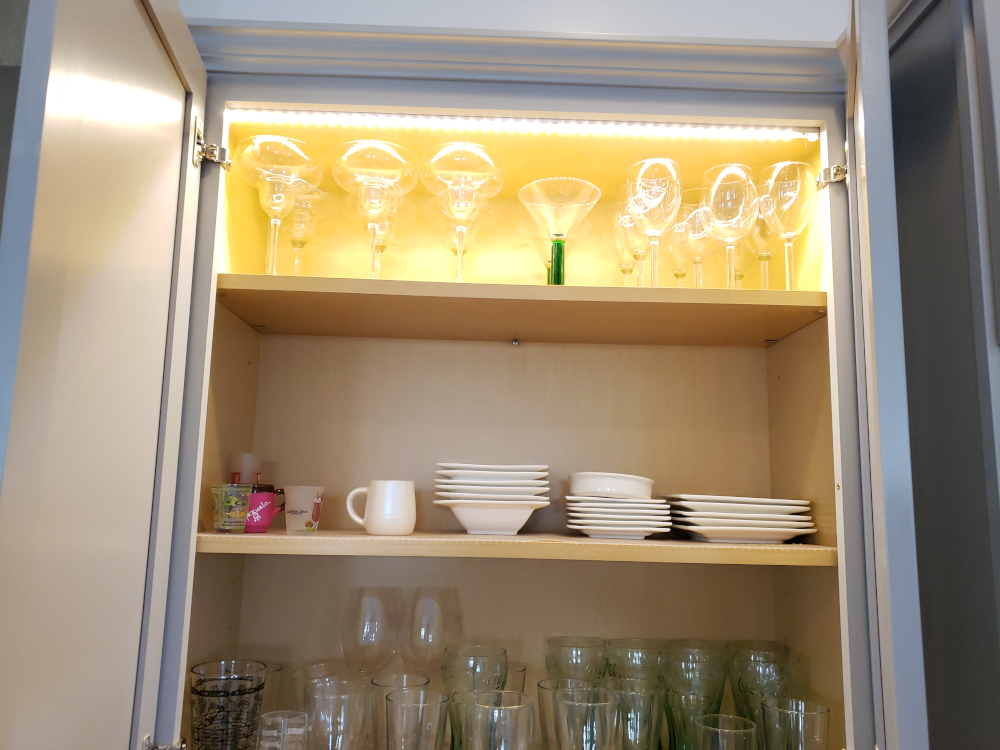

Automatic Cabinet Lights

Lights will turn on when detecting human presence when opening the cabinet's door. Lights stays on and will turn off after doors are closed or , if left opened, about 30 seconds after person moves away.

Standard lengths

20 inches (50 cm)
12 inches (30 cm)
6 inches (15 cm)

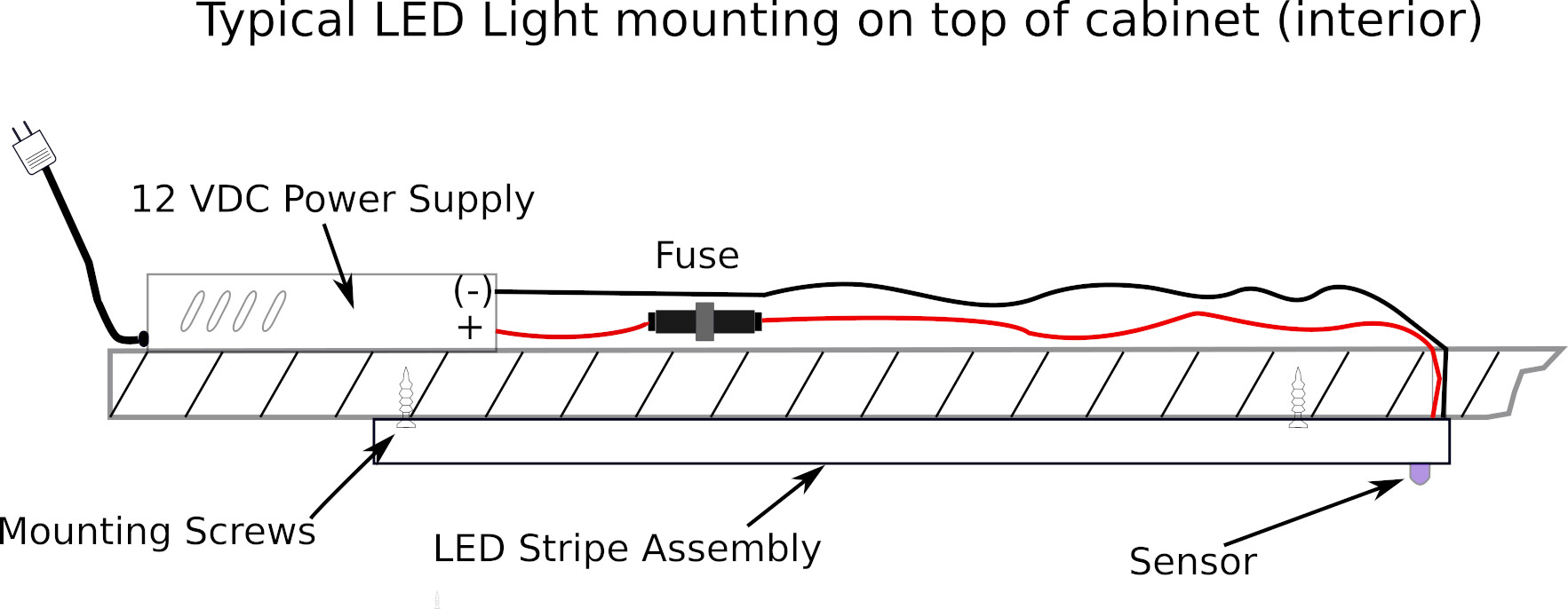

System_Sketch — Inside Cabinet (automatic) lights

Technical Specifications (60 LEDs/m strips)

Voltage : 12 VDC
Current Consumption: 1.1A/m
Color Temperature: 3000K (Warm White) and 4000K (Cool White)
Total Power ~13W/m
Total Power supply consumption in idle mode: < 1.6W

Typical Installation

Installation is simple as shown in above figure, the proximity sensor can be ordered to be installed on either side for individual aluminum fixtures.

Below are the required parts for a typical installation:

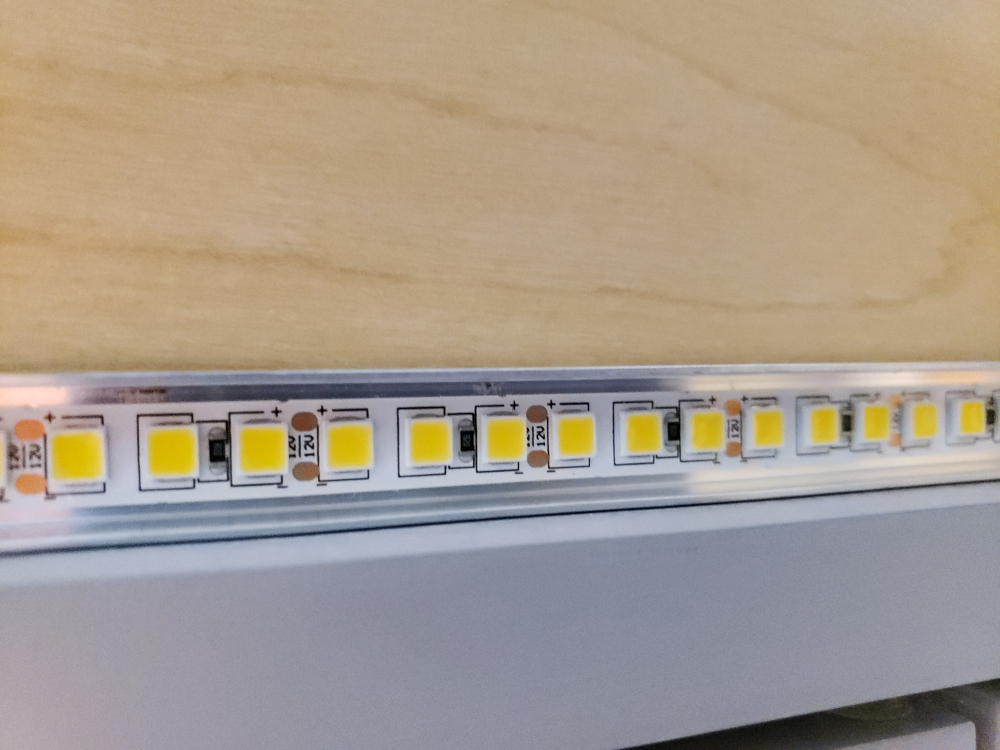

LED strip on Aluminum mount
12 VDC Power Supply
Manual or Automatic switch

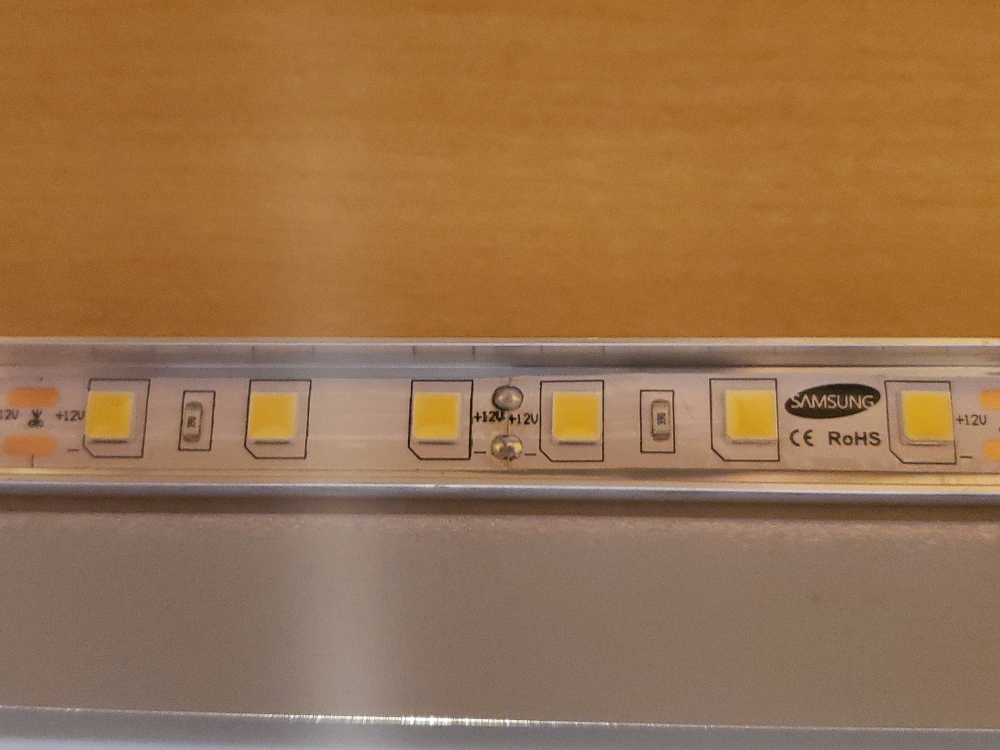

LED mounted on 6060 Aluminum profile for improved heat sink.

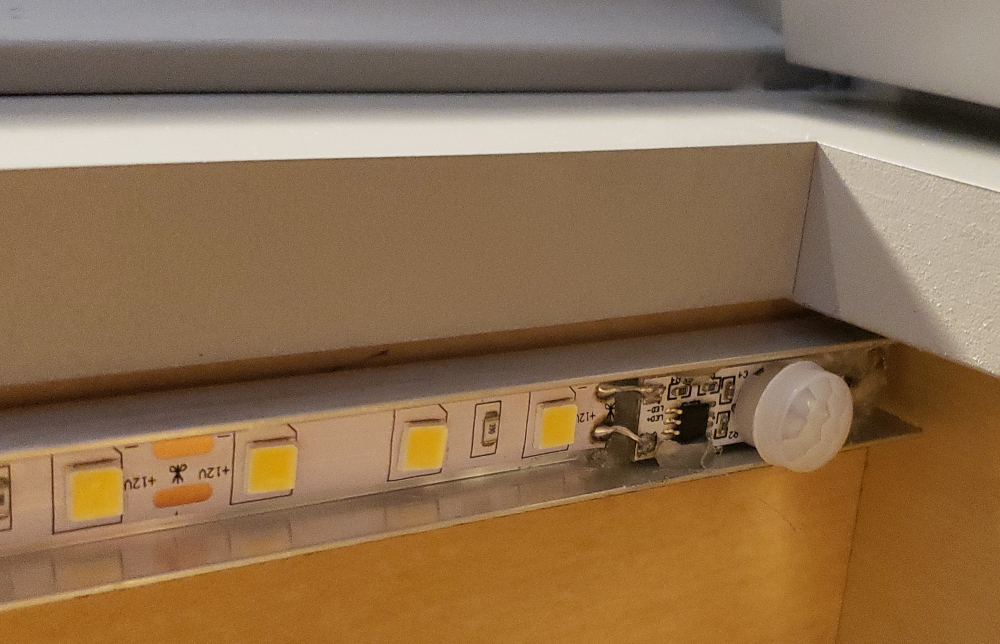

View of IR sensor located at the corner.

Power Supply

Standard power supply 12V 6A is OK for up to 4 meters of strip light with 60 LEDs/m. Longer installations requires a higher wattage power supply based on total current consumption.

Pre-assembled fixture (60 LEDs/m) prices (standard length)

6 inches (15 cm) $20.00
12 inches (30 cm) $35.00
20 inches (50 cm) $58.00

Pre-assembled fixture (60 LEDs/m) prices (customized length)

More than 20 in (50 cm) fixtures: $2.8/in

Power supply cost for a 12V 75W unit is 25 U$D . It is good to power up to six 20 in length assemblies or a total added length of 130 inches (3.3 meters).
